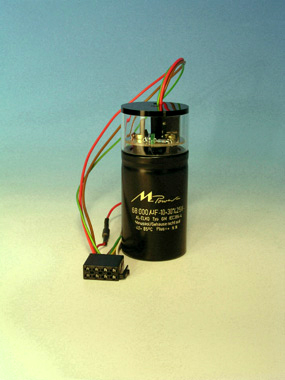

The
HeadCap is a storage capacitor used to stabilise the power
directly at the head unit. It should be installed in the direct
vicinity of the head unit, using the DIN connection cable set
provided.
Even if
your head unit doesn't have integrated power stages installing a
HeadCap will bring a significant improvement in sound quality by
ensuring ideal power conditions for signal processing in the head
unit. The result is a much smoother and more clearly delineated
sound, with more powerful and clearer basses. A small investment
for such an impressive result.
Series
Product
Diameter
Height
SC68
Storage capacitor 68.000 µF
50 mm
165 mm
HeadCap Wiring Diagram
If you opt to install the HeadCap
without an adapter cable please make sure that the diode
integrated in the positive lead is built into the circuit. This
diode works together with the HeadCap to suppress dips in the
vehicle's power supply. It must be connected between the
positive lead from the vehicle battery and the head unit.
